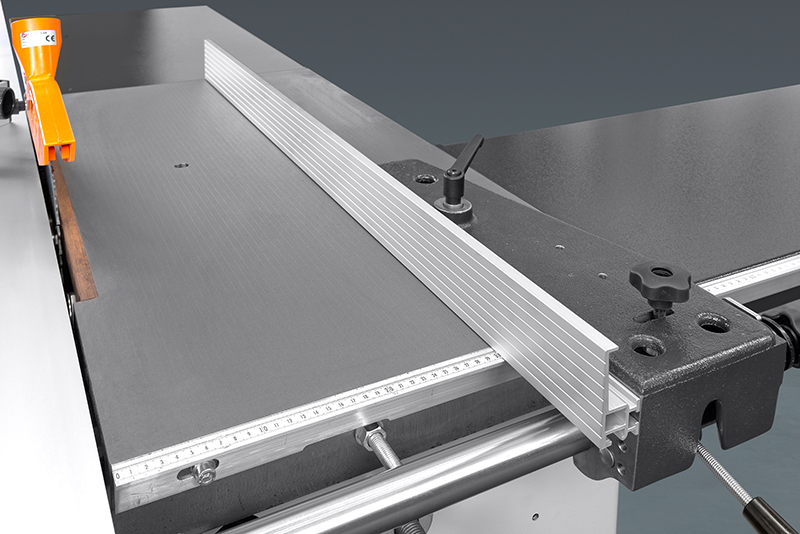

Professional panel saw with a cutting width of 1270mm & table stroke of 2500mm. Features include scoring unit with fine adjustment, blade diameter 300mm, cutting depth of 100mm and parallel fence & crosscut fence.
Specifications:
- Max. saw diameter: 300mm
- Max depth of cut at 90°: 100mm (at 45° 70mm)
- Cutting width: 1270mm
- Saw stroke: 2500mm (option 2800mm / 3100mm)
- Sawblade bore: 30mm
- Main blade motor (three phase): 6.6PS / HP (S6)
- Main saw RPM: 4500
- Scoring blade motor: 0.55ps/hp
- Scoring saw RPM: 6500
- Scoring sawblade: 120 x 250mm, max. cutting depth 4.5mm
- Sliding table dimensions: 2850 x 310mm
- Table extension: 720 x 450mm
- Sawtable dimensions: 940 x 510mm
- Cross-cutting table: 1060 x 510mm
- Net weight: 505kg
