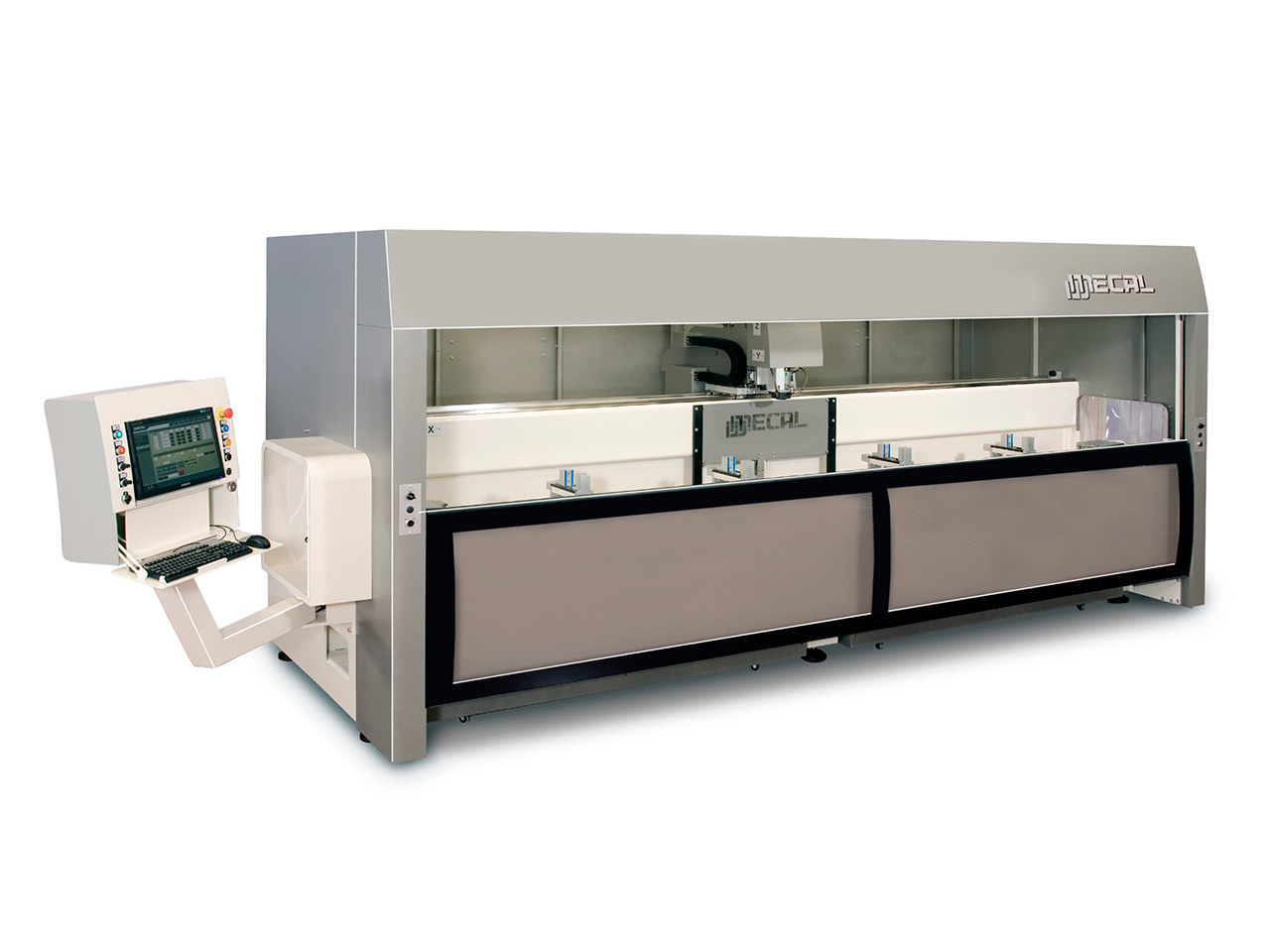

The Kosmos is a 4-axis machining centre for automated machining of aluminium extrusion profiles. Other materials may include steel, brass, copper and PVC materials.
The MC 305 is ideal for window and door fabrication. Other applications include; curtain walling, automotive, internal partitions, sign manufacturing, air conditioning and refrigeration.
The Kosmos machining center offers a wide range of operations, including slots, pockets, holes and custom shapes. Functions also include end slotting, tapping, rigid tapping applications, drilling and flow drilling.
- A axis Profile rotation +125° to -125° to work 3 sides
- Encoded rotation to work intermediate angles
- Full CAM-3d software
- Integration with external software
- Main spindle does all work with full use of the magazine

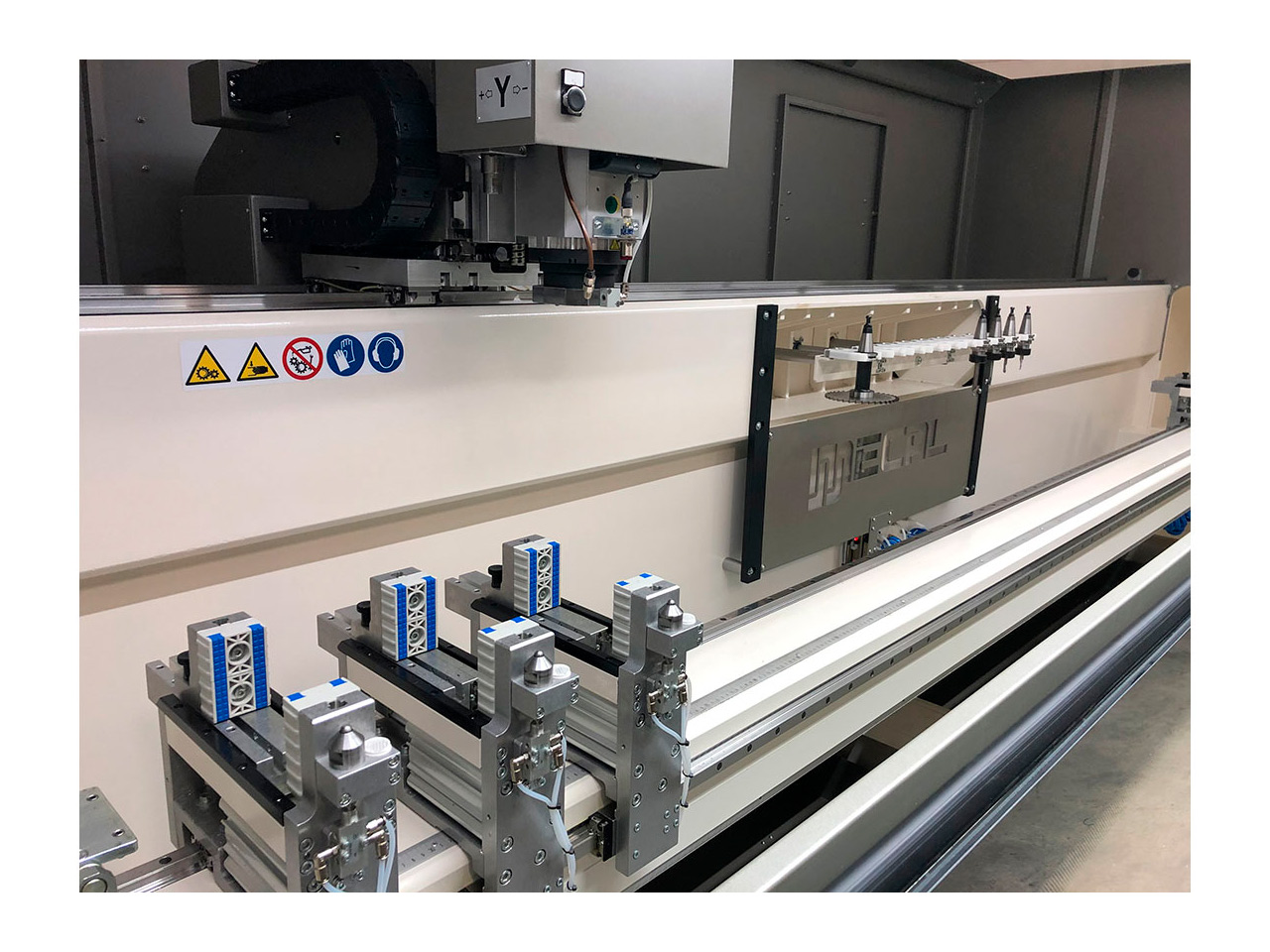

- DPM version with automatic clamps positioned by head
- MMI version with automatic motorised vices
- Working length 4000 mm (158″)
- Open ends to allow machining up to 8000mm (315″)
- Centralised 10 tool automatic magazine
- Zero stops at each end to work multiple profiles
- Automatic centralised lubrication system
- Option for angle drive head to work front & back sides
- Option for 8.5kw head and rigid tapping function
4 Axis Machining
4 Axis machining capability with A axis rotation performed by a rotating table with a range of -125° to +125°
Loading Zones
Single loading zone with 2 zero reference stops allowing 2 different jobs of appropriate length to be worked. Or on full length job, the machine ends are able to be opened to allow machining of profiles longer than the Z axis.
Mecal CAD CAM 3D
Designed to be the most advanced and easy to use system currently available. All of the basic programming is available with pre-loaded macros which are applied by a simple drag and drop process. The graphical 3D presentation is a clear and accurate representation that can be viewed from any angle to check for errors, and it demonstrates the orientation for the workpiece to be correctly loaded.
Tool Magazine
10 position automatic tool magazine is mounted centrally to reduce tool change times to an absolute minimum.
