BENDMAK CYL Series Mechanical Plate Rolls

  • BENDMAK CYL Series Mechanical Plate Rolls

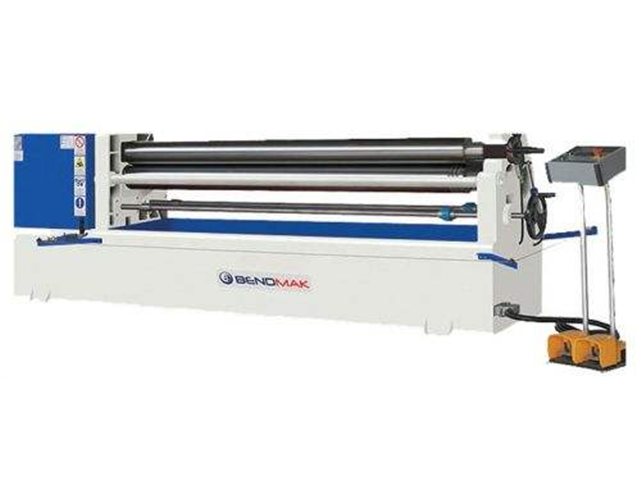

    BENDMAK CYL Series Mechanical Plate Rolls Bendmak004

    Standard Accessories:
    • For the perfect result, top and bottom rolls driven by brake electric motor and gearboxes in gear system;
    • Cast iron body Induction hardened rolls;
    • Opening top roll to side after bending for taking out the material easily;
    • Cone bending device;
    • Main motor with brake
    • Movement of the back and bottom rolls up and down manual with hand wheel
    • Portable control panel in order to control material from required locations with foot pedal
    • In accordance with EU norms
    Additional Accessories (when required):
    • Back roll powered by electric motor
    • Induction hardened rolls
    • Digital readout for displaying the position of back roll
    Type CYL
    110
    10/4.0

    CYL
    110
    12/3.5

    		 CYL
    110
    15/3.0    		 CYL
    110
    20/2.0    		 CYL
    120
    12/4.0    		 CYL
    130
    10/5.0    		 CYL
    130
    15/4.0    		 CYL
    130
    20/3.0    		 CYL
    140
    12/5.0    		 CYL
    140
    20/4.0
    Working Length (mm)
    		 1050 1270 1550 2050 1270 1050 1550 2050 1270 2050
    Pre-Bending (mm)
    		 4.0 3.5 3.0 2.0 4.0 5.0 4.0 3.0 5.0 4.0
    Max. Thickness (mm)
    		 5.0 4.0 3.5 3.0 4.5 5.5 4.5 4.0 5.5 4.5
    Top Roll (mm)
    		 110 110 110 110 120 130 130 130 140 140
    Min. Bending (mm)
    		 150 150 150 150 175 190 190 190 210 210
    Motor Power (kW)
    		 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2
    Bending Speed (kW) 4.5 4.5 4.5 4.5 4.9 5.3 5.3 5.3 5.7 5.7
    Length (mm)
    		 1820 2020 2320 2820 2020 1820 2320 2820 2020 2320
    Width (mm)
    		 1150 1150 1150 1150 1150 1200 1200 1200 1200 1200
    Height (mm)
    		 850 850 850 850 850 900 900 900 900 900
    Weight (kg) 1080 1150 1250 1350 1250 1220 1360 1480 1365 1530
    • Data based upon steel 240 N/mm2 yield point.
    • For cone bending, all bending values must be considered 50% less.
    • All specifications are subject to change without notice.
